PRODUCTS \ IP Cameras \ Camera With Pan,Zoom \ DYN-625


Item
: IP Camera

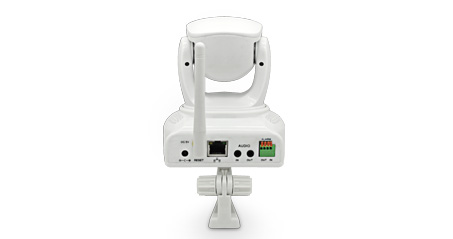

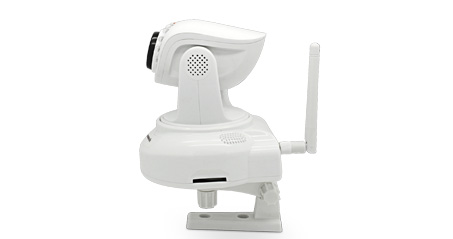

Item code: DYN-625
Download PDF file



SPECIFICATIONS

Hardware performance
Product type IP camera
Operation system Embedded operating system

Web environment

Web protocol TCP/IP, UDP/IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, RTSP, ONVIF
LAN port 10Base-T/100Base-TX
Wifi WIFI,802.11 b/g/n

Image performance

Resolution 720P, 640*360, 320*180
Compression mode H.264/M-JPEG
Max frame rate 30fps

Other parameters

Lens f=3.6mm, F=2.0
Min. illumination IR on, 0 Lux
Electronic shutter 1/50s(1/60s)-1/100,000 s
SNR 48db
Safety performance Three levels of user rights
Install mode Wall-mounted / ceiling-mounted
Other performance PC software, support for Microsoft Windows 98/2000/XP/Vista/Windows 7/Mac OS,And the
Internet Explorer6.1 and above version or browser compatibility, Firefox, etc., provide
iSmartViewPro client software
Power supply DC 5V
Sensor CMOS Sensor
IP camera performance Support video control, Two-way voice talkback, motion detection, external alarm(sends information to alarm the server by Email, FTP); Manufacturers provide free DDNS, and has been written into equipment; 10pcs IR LEDs,6 meters effectively; Platform level angle 340 °,90 °vertical angle; automatically control through the photoresistor;
Audio input With microphone, and provide the audio input interface
Audio output Provide the audio output interface
Alarm in In support of the 1 road
Alarm out In support of the 1 road
Power consumption Power<6W

Appearance parameters

Body size 111*120*123mm
Product weight 0.36kg

Environment parameters

Environment temperature
-10℃--50℃
Environment humidity
below 85% RH
