PRODUCTS \ LAN Products \ Network Cards \ NC-100TX-DL

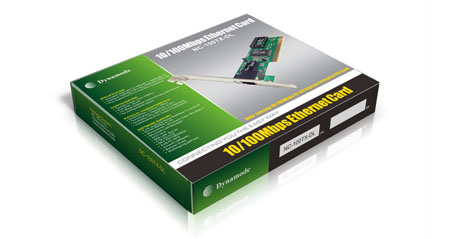

Item: 10/100Mbps Ethernet Card
Item code: NC-100TX-DL
Download PDF file    Download Packaging file



DESCRIPTION
32-bit 100/10M PCI adapter. This is a 32-bit adapter for using in personal computers with a Peripheral Component interconnect (PCI) computer bus to eliminate I/O bottlenecks and to reduce CPU loading using bus master architecture.
This is also a Full-Duplex adapter connected to an Ethernet network with a single connection over unshieded twisted pair (UTP) cable and can auto-sense either 10 Mbps or 100 Mbps by full auto-detection.


FEATURES

Single-chip controller complies to PCI local bus specification revision 2.1
Conforms with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX
   standards
High performance bus master architecture for low CPU and bus utilization
Single shielded RJ-45 connector for using at either 10 or 100Mbps speed
Single +5 V power supply operation
On-board socket for an optional remote boot ROM
Provides I diagnostic LED to monitor linking status
Provides high performance network drivers such as ODI, NDIS, NDIS3,
   NDIS4, NDIS5, UNIX, etc


SPECIFICATIONS

Standards and Protocols Standard:IEEE 802.3 10BASE-T,100BASE-TX
Interface:10BASE-T(RJ-45),100BASE-TX(RJ-45)
Pcs Supported:PCI Local Bus computers
CONFIGURATION System Clock: Upto 33MHz
Bus With: 32-bit
I/O Base Address: Automatically determined
by configuration space
PHYSICAL CHARACTERISTICS Dimensions: 115mm×38mm
Temperature: Operating: 0~55℃
Humidity:10%~90% Non-Condensing
Certification:FCC Class A certification
SOFTWARE SUPPORT Fully supports Novel NetWare 3.x and 4.0
Novell NetWare Lite
Windows NT / Windows Vista / Windows 7
Microsoft LAN Manager
SCO Unix
IBM LAN Server
FTR PC/TCP
DEC PATHWORKS
SUN PC NFS
Artisoft LANtastic
Banyan Vives
Wollongong pathway
