PRODUCTS \ LAN Products \ Routers \ BR6004-N

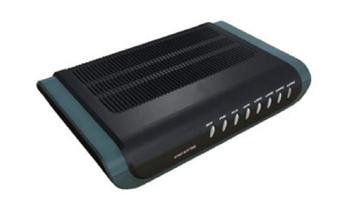

Item:Broadband Cable/DSL Firewall Router
Item code: BR6004-N
Download PDF file


Ideal for Cable/DSL subscribers including VirginMedia (formally NTL/Telewest)
Built-in WAN Port for connection to existing Cable/DSL Modem
4-Port 10/100 Ethernet Switch for connection to PCs, Servers, Media Centres, Consoles etc
Safe&SecureTM SPI Firewall for total online protection far all Broadband Users
EzeSetupTM Web -based setup Wizards allow quick and easy Internet connection
Parental Control - protect your children from inappropriate Websites
Advanced Business Class features - DMZ, Virtual Server and Static Routing
Remote Web based management - Configure the Router anywhere, anytime
Built-in DHCP Server and NAT for one step device setup
Fully IEEE802.3, IEEE802.3u compliant


Standards IEEE802.3; IEEE802.3U
Ethernet Protocol CSMA/CD
Ports WAN 1 10/100Auto-MDI/MDIX Rj45 Port
LAN 4 10/100 Auto-MDI/MDIX Rj45 Ports
Protocols TCP/IP, PPPoE, DHCP, NAT
Flow Control IEEE802.3x for Full duplex
Back pressure for Half Duplex
Status LEDs M1, M2
WAN: Link/Act
LAN: Link/Act
Power External PSU, 9V-lA
Operating Temp. 0 degrees C ~ 40 degrees C
Operating Humidity 5% ~ 90% RH, Non-Condensing
