PRODUCTS \ LAN Products \ Switches 10/100Mbps \ SW80010-D

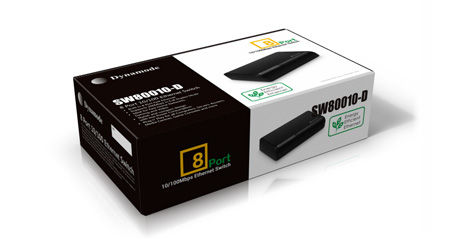

Item: 8 Port 10/100Mbps Ethernet Switch
Item code: SW80010-D
Download PDF file    Download Packaging file


FEATURES

Built-in 8 Port Fast Ethernet
Supports 200Mbps in Full Duplex Mode
Ideal for Fast Home Networks, Gaming and Video
Ideal for SME Businesses looking higher port densities
Sylish and compact design with low Power Consumption
Plug n' Play for all Computers, Servers, Routers, Media Centres, Game    Consoles and more


SPECIFICATIONS

Standards and Protocols IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and
backpressure for Half-Duplex Mode
MAC Address Table 1k
Forwarding Rate 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method Store-and-Forward
Ports 8 10/100Mbps Auto-Negotiation
RJ45 ports (Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ù STP (maximum 100m)
LED Indicators
Power, Link/Act (1, 2, 3, 4, 5)
Environment Operating Temperature: 0°C~40°C (32℉~104℉)
Storage Temperature : -40°C~70°C (-40℉~158℉)
Relative Humidity :10% ~ 90%, non condensation
Storage Humidity : 5%~95% non-condensing
Power External Power Adapter
